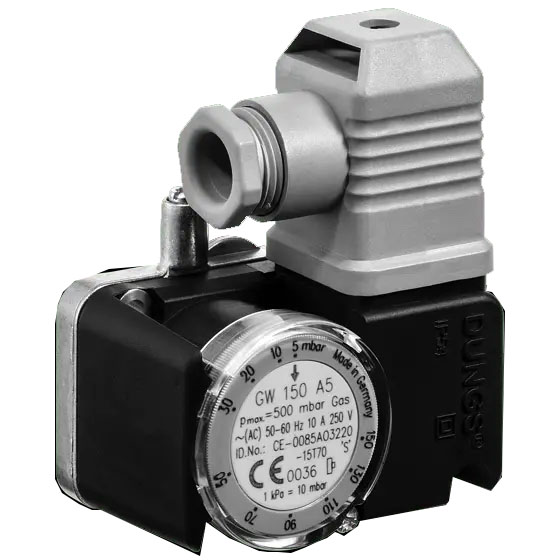

DUNGS COMPACT PRESSURE SWITCH GW…A6

DUNGS COMPACT PRESSURE SWITCH GW…A6

  • Pressure switch design: Pressure switch GW…A6
  • Setting range: 0,5 – 15 kPa (5-150 mbar)
  • Max. operating pressure :  Model GW 3 A6 – GW 150 A6: 50 kPa; Model GW 500 A6 : 100 kPa
  • Contact material: Ag
  • Electrical connection Equipment connector

Technical description
The pressure switch GW…A6 is an adjustable compact pressure switch according to EN 1854 for combustion plants.

The pressure switches are suitable for switch-on, switch-off and switch-over of an electric circuit at a variable pressure actual value, relative to the set desired value. The setpoint (switching point) is set on an adjusting wheel with scale. A test nipple is integrated in the metal housing as standard.

Application
Pressure monitoring in combustion, ventilation and air-conditioning technologies. Suitable for gases of families 1,2,3 and other neutral gaseous media.

Approvals
EU type testing certificate as per:
• EU-Gas Appliances Regulation
• EU-Pressure Equipment Directive
Pressure switch class „S“ as per EN 1854.
Approvals in other important gas
consuming countries
